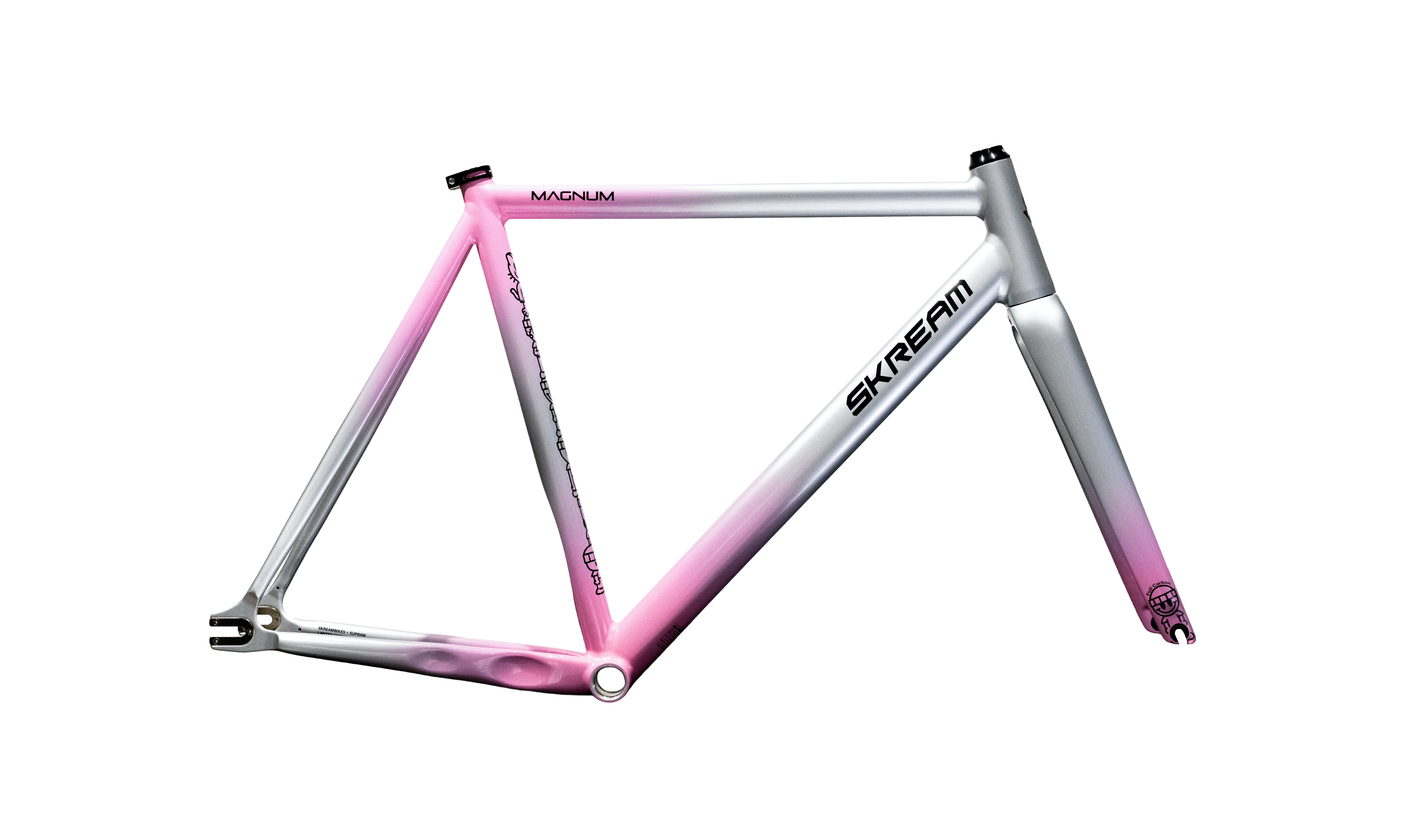

Magnum Supraw Limited Edition frameset

Regular price $7,700
Size XS
6066 T6 Triple Butted Alloy Frame
Full Carbon Fork
6066 T6 Triple Butted Alloy Frame
Full Carbon Fork

Technical Information

About the Frame

Lucas is a French artist whose work has evolved over the years from canvas to clothing leading to the creation of Supraw. Today Supraw is one of the most well known artistic streetwear brands in France defined the iconic character Wilfried.

From the moment we met Supraw and Wilfried it was clear that we wanted to create something together. Supraw’s pop up in Paris at the end of 2025 finally became the moment to turn this idea into reality.

What started as a one of one project has now evolved into a limited edition of 10 frames. Each of the ten pieces is individually numbered making every frame a unique collectible.

The foundation of this collaboration is our favorite product the Magnum reimagined through Supraw’s artistic vision.

Spec

Frame Specification:

  • Material: 6066 T6 Triple Butted Alloy Tube Frame
  • Weight: 1550g (Size M)
  • Bottom Bracket: BSA BB 68mm (English)
  • Seatpost diameter: Ø 31,6 mm
  • Headset: Skream Alloy Integrated Oversize Ø 41.8-51.8 mm
  • Tire Clearance: 700 x 35c

Fork Specification:

  • Material: Full Carbon
  • Offset/Rake: 43 mm
  • Typ: Tapered 1-1/8" - 1.5"
  • Weight: 380g (Uncut)
  • Steerer Tube Length: 300 mm
  • Tire Clearance: 700 x 35c
Geometry


XS S M L XL
Top Tube Length 515mm 535mm 550mm 570mm 585mm
Seat Tube Length (C-T) 505mm 535mm 560mm 585mm 610mm
Head Tube Length 100mm 125mm 150mm 170mm 195mm
Head Tube Angle 73 73.5 74 74.5 74.5
Seat Tube Angle 75.5 75 75 74.5 74.5
Chainstay Length 393mm 393mm 393mm 393mm 393mm
BB Drop 57mm 57mm 57mm 57mm 57mm
Fork / Rake Offset 40mm 40mm 40mm 40mm 40mm
Fork Length 370mm 370mm 370mm 370mm 370mm
Wheelbase 952mm 963mm 974mm 985mm 1000mm
Reach 387mm 396mm 404mm 413mm 420mm
Stack 494mm 520mm 545mm 566mm 590mm
