Magnum24 Lava

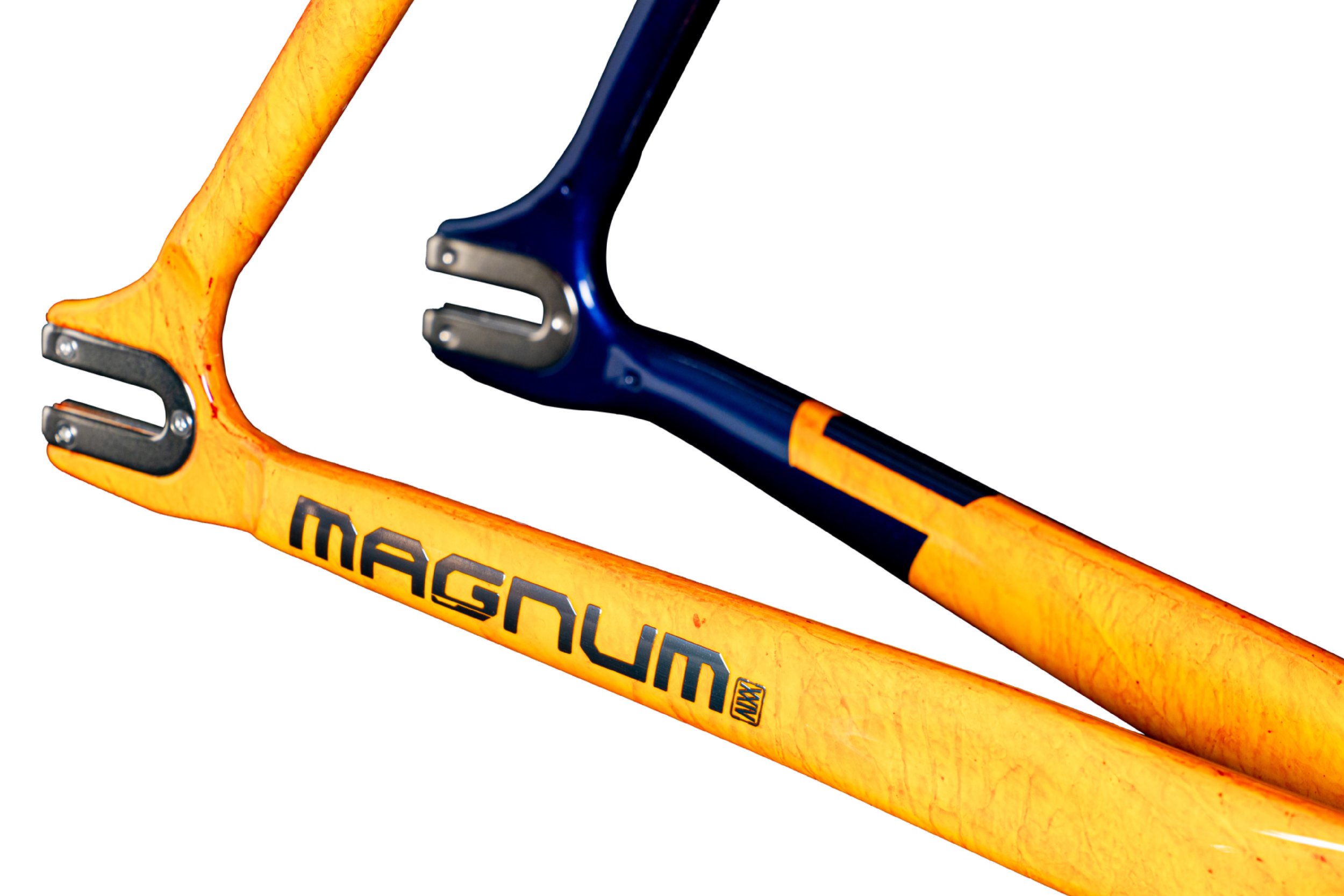

The new generation of Magnum series. A versatile machine with outstanding performance in both racing and commuting. New chainstay design and full carbon front fork to increase the frame stiffness and enhance power transfer, featuring a 700x35c front and rear tyre clearance.
Frame Specification:
Size : XS(51)/S(54)/M(56)/L(59)/XL(61)
Tubing : 6066 T6 Triple Butted Alloy Tube Frame
Weight : 1550g (M)
Bottom Bracket Threading : BSA BB 68mm (English)
Seatpost Diameter : Ø 31,6 mm
Headset: Skream Alloy Integrated oversize Ø 41.8-51.8mm
Tire Clearance : 700 x 35c

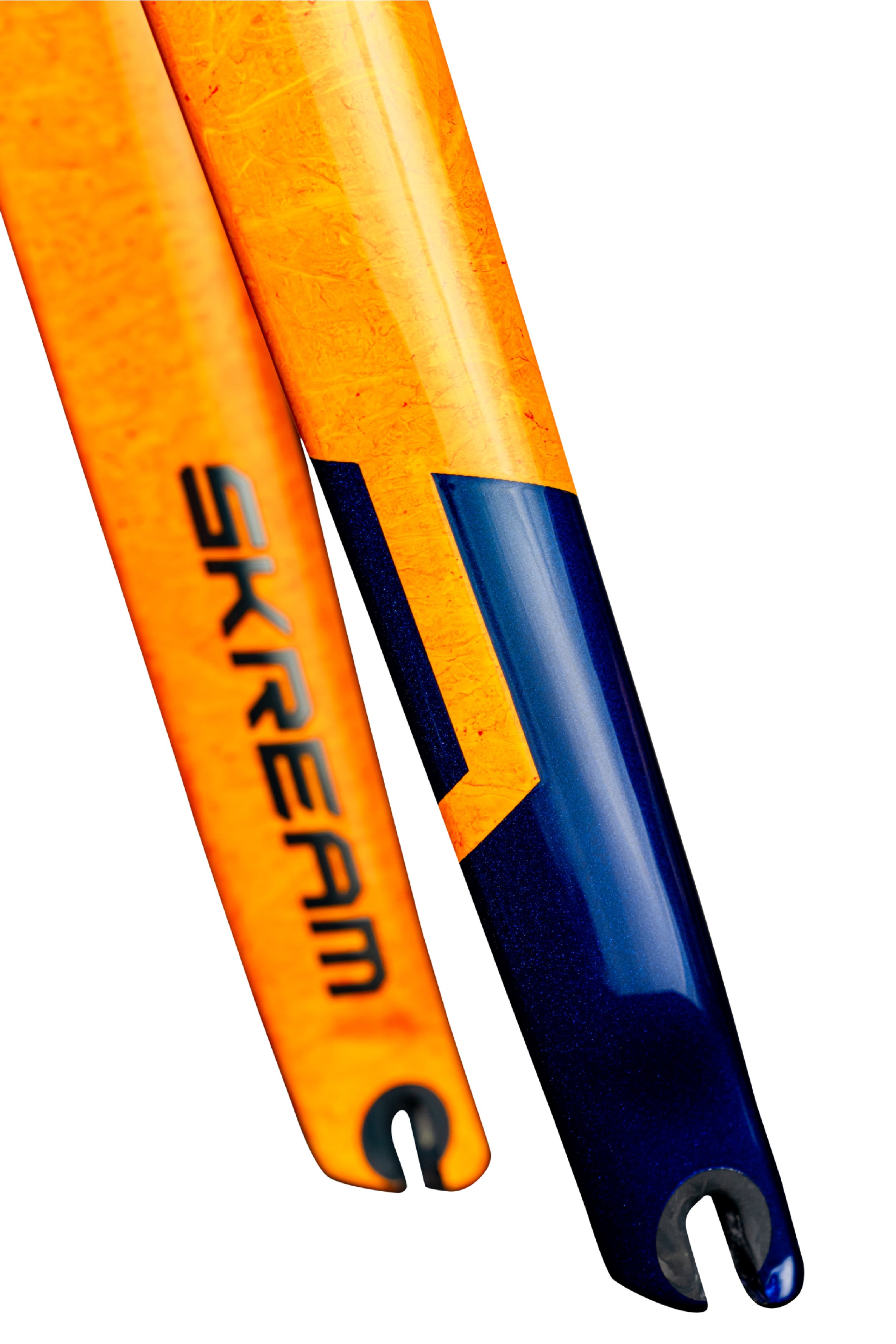

Fork Specification:
Material: Full Carbon
Offset/Rake: 43mm
Type: Track 1-1/8 - 1.5"
Weight: 380g (Uncut)
Length: 300mm Steerer Tube
Tire Clearance : 700 x 35c
